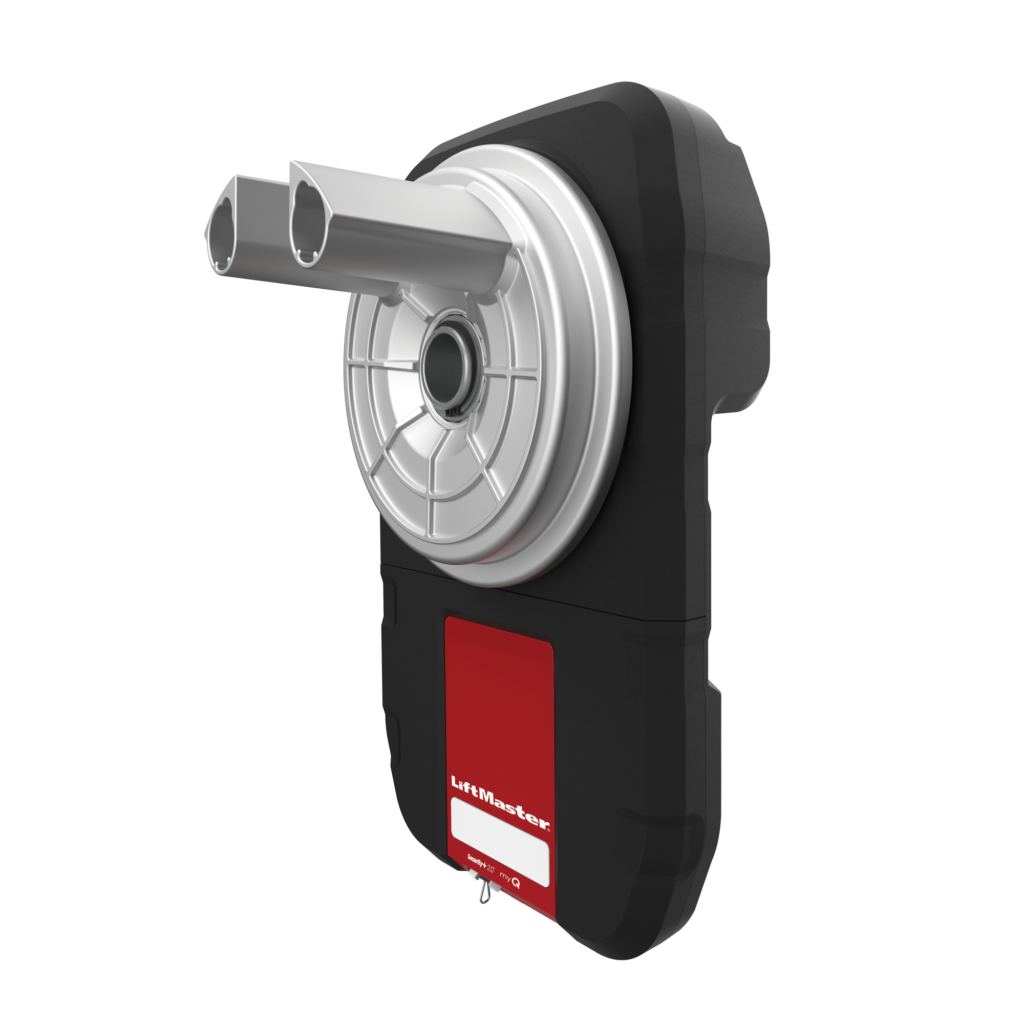

The LM955GBME heralds the latest addition to the Liftmaster Light Commercial portfolio. It has been specifically designed for large roller doors and is also ideal for shopfront roller grilles.
With myQ technology, you can see if your door is open or closed from anywhere in the world as well as control it*. You can also schedule to operate your door at certain times of the day and receive notifications when you desire.
* myQ requires Monitored Entrapment Protection (eg safety beams) to operate
*Additional purchase of Grifco myQ Gateway and Safety IR Beam accessories required to enable myQ functionality.
Power
Main AC Power: 220-240VAC 50-60Hz
Max. Pull Force: 1,300N
Power: 150W
Operating Temp: -20°C to +50°C
Door
Max Door Height: 5.5m
Max Door Weight: 270kg
Normal Torque 45Nm
Door Type: Commercial Steel Spring-Balanced Roller Door or Grille
Max. Door Size: 28m² (22m² wind-locked)
Max. Door Cycles: 50 cycles / day
Dimensions
Size: 470 (H) x 280 (W) x 95mm (D)
Side Room Clearance: 45mm between door drum and mounting bracket
Operator Depth: 95mm (Door Curtain to Wall)
Tines: 2 x 90mm diecast aluminium tines
Warranty 2 Years / 10,000 Cycles
2x ME965-LM remote
1x 75EV wired push button
